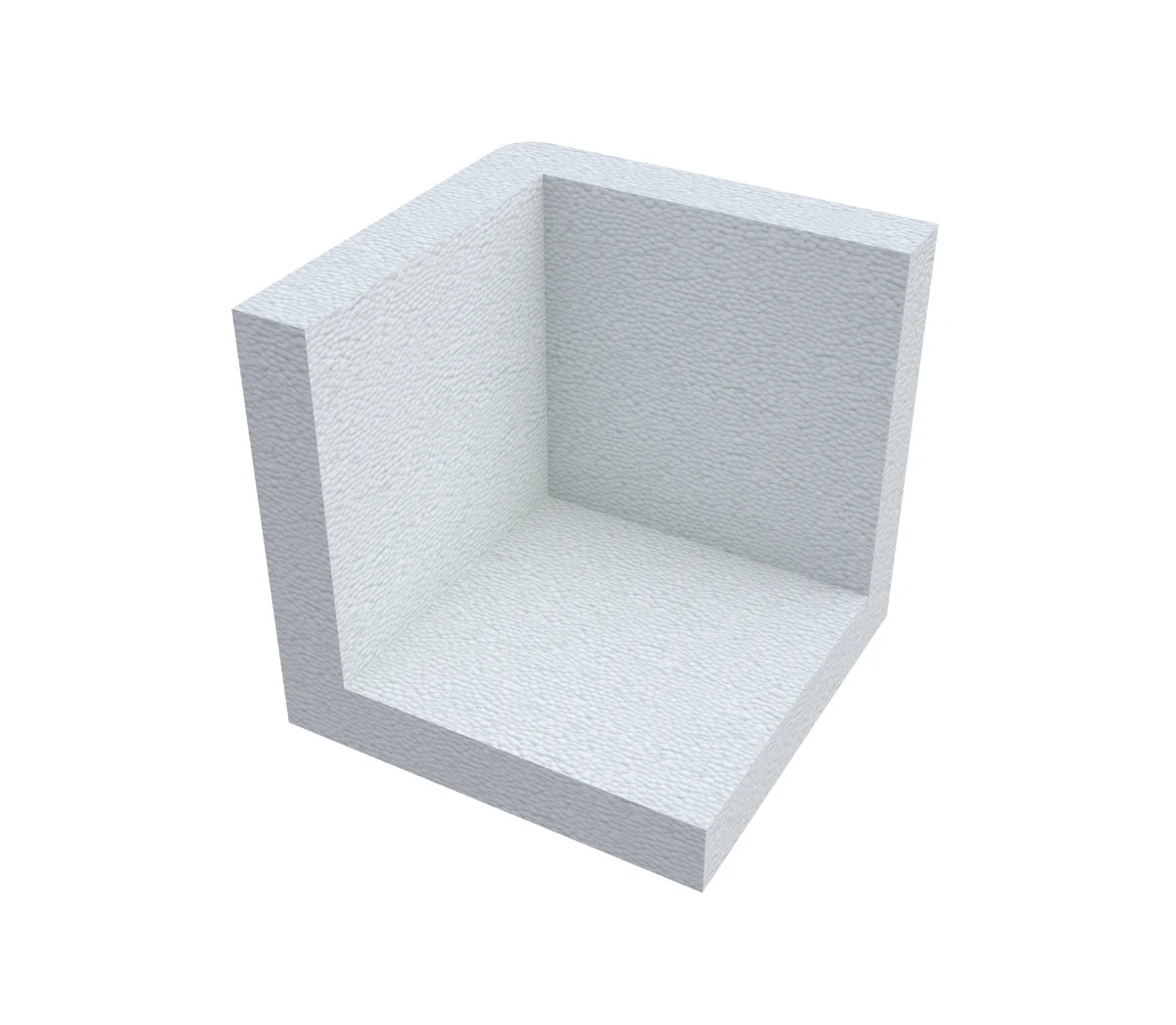

Protective corners

A range of corners and wedges for safe transport.

  • 3 models available: standard model, split square corners and mirror corners
  • Adapted to the needs of manufacturers in all sectors
  • Made in France

Description & Details

Our EPS and PPE corner protectors are designed for maximum safety during transport and storage.

Specially developed to absorb shocks, they preserve the integrity of your products while providing optimum cushioning.

Ideal for manufacturers in all sectors, these ergonomic wedges can be easily integrated into packaging workstations and are compatible with automated production lines.

Their efficiency ensures damage-free delivery, even for the most sensitive products. Our range includes several standard models, as well as customized solutions tailored to your needs.

 - Icon

Shock absorption

Protecting product integrity

 - Icon

Optimum calibration

Your product

 - Icon

Ergonomic operation

On the packing station

 - Icon

Compatibility

With automated production and packaging lines

Full specs list

  • Material: Expanded polystyrene (EPS), Expanded polypropylene (EPP)
  • Color: White or black
  • Thicknesses: from 10 to 50 mm

Dimensions - Standard models

Designation
Outside dimensions LxWxH (mm)
Thickness (mm)
Quantity / CU
Packaging
Corner 70x20
70x70x20
20
1008
Cover
Corner 75 x20
75x75x75
20
560
Carton
Corner 90x20
90x90x90
20
500
Cover
Corner 135x20
135x135x80
20
384
Cover
Corner 150x20
150x150x150
30
150
Cover

Dimensional table - Breakaway square corners

Designation
Outside dimensions LxWxH (mm)
Thickness (mm)
Material and density
Quantity / CU
Packaging
Square corner 100x25
100x100x100
25
PPE 25kg/m3
232
Cardboard

Dimension chart - Mirror corners

Designation
Outside dimensions LxWxH (mm)
Thickness (mm)
Quantity / CU
Packaging
Mirror corner 110 - Slot 15
110x110x50
18
600
Kit
Mirror corner 110 - Slot 20
110x110x50
15
600
Kit
Mirror corner 110 - Slot 25
110x110x50
13
600
Kit
Mirror corner 110 - Slot 30
110x110x50
10
600
Kit
Mirror corner 120 - Slot 20
120x120x44
11
600
Kit
Mirror corner 120 open - Slot 20
120x120x120
12
800
Kit
Mirror corner truncated - Slot 32
150x150x72
20
168
Kit
Mirror corner truncated - Slot 50
150x150x70
50
240
Kit
Mirror corner truncated - Slot 74
150x150x104
15
120
Kit
Mirror corner truncated - Slot 80
150x150x104
12
120
Kit
